ENGL TID-2016012: Installing and configuring language settings during the Windows 10 build process (ZENworks Imaging) : ENGL Support

Issue

Microsoft have released ISOs containing Windows 10 language packs. This TID details a method to select and integrate them into a Windows 10 build that is deployed via ZENworks Imaging.

Requirements

Windows 10 (Enterprise or Education edition)
Imaging Toolkit 10.0.4 (or newer)
ENGL build process configured in a ZENworks environment (ZMG imaging)

Solution

Integrate Language Pack selection and installation into the deployment process as follows;

Update Zim to display a list of available language options when restoring images
When a language is selected restore the appropriate files to the local machine and store information to ZISD
Prompt to select the default language if more than one language is selected
Prompt to enforce the selected default language (using Group policy setting)
Install selected language packs during the deployment process and set as the default UI language

NOTE:

More information on Windows 10 language packs is available at https://support.microsoft.com/en-us/help/14236/language-packs

WARNING!

Do NOT perform this procedure in a production environment without first fully testing in a non-production test environment.

Steps

Done

Task

1.	Download appropriate language packs from Microsoft

2.	Configure the Imaging Environment

3.	Integrate updates into build process

4.	Test updated files

Download langauge pack ISO files from Microsoft

Sign into the Microsot Volume Licensing Service Center web page.
Select the "Downloads and Keys" tab
Search for "Windows 10 language"

Select Language Pack media for the OS being deployed. This may be version specific e.g. Windows 10 Enterprise LTSB 2015 or Windows 10 Language Pack, Version 1607.

NOTE:

Microsoft has changed the naming format of the language pack files with the Windows 10 1607 release.
More information here: https://msdn.microsoft.com/en-gb/windows/hardware/commercialize/manufacture/desktop/where-is-lpcab .
This TID will work with both filename formats.

Download the Language Pack media.

Configure the Imaging Environment

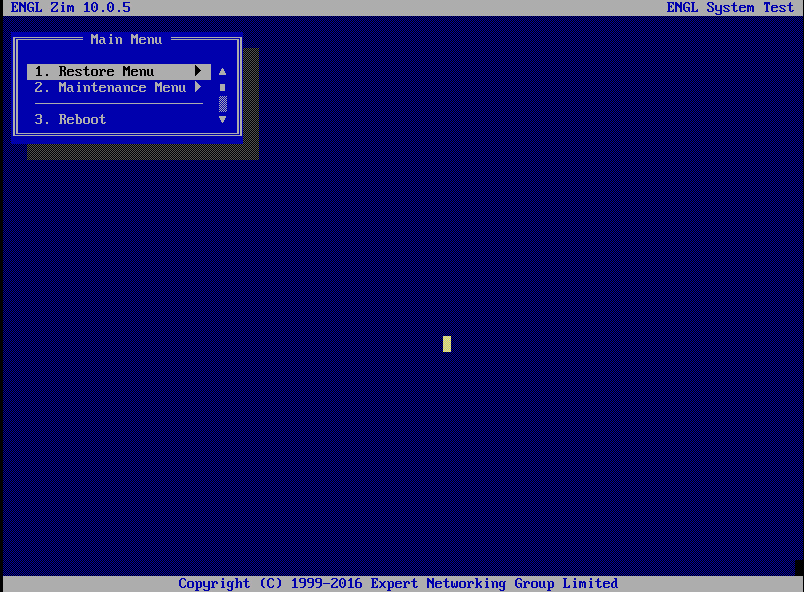

Zim is used to select which project is restored to the machine. With the changes in this TID Zim will also let you select the language to be configured once the machine has been built.

Done Task

1.	Create a language lookup file, `lang.ini`

2.	Configure Zim to read the `lang.ini` file

3.	Configure the project restore form to display a language selection option (if available)

4.	Read in language settings from `lang.ini` based on information selected in the Zim form.

5.	Configure Zim to use ZISD to store and restore the selected langage details

6.	Configure Zim to restore the language image file(s)

7.	Update `zimget.s`

8.	Save files to the server

Create a `lang.ini` lookup file

This file will list the available languages for each base image name as well as the locale information for the each language. The locale information will be used to ensure the correct keyboard layout etc. is set for the deployed machine.

This file should be created in the <integration path>/zenworks/tftp/zimfiles folder.

In this example scenario there are three MUI packs available plus the default language of English. Note that the MUI language packs are specific to the OS version. So, in order to ensure that the correct version is restored the Base_Image name from the projects.ini file is used.

Review the projects.ini file and identify the Base_Image name for the OS you wish to deploy MUI packs to. For example, the entries highlighted in red below:

;
; ENGL Zim projects.ini lookup file
;

[projects]
project1 = Windows 10 Education [10586 (Feb '16)] (x64) - en-US
project2 = OSONLY-win7-sp1-pro-x86-zcm1142
project3 = BASEOS-win10-ent-x86-14393-zcm1142

; Project details
[Windows 10 Education [10586 (Feb '16)] (x64) - en-US]
Description        = Windows 10 Education [10586 (Feb '16)] (x64) - en-US
project_image_path = win10-edu-x64
project_os         = win10-edu-x64
partition_count    = 2
partition1_size    = 600
partition2_size    = 60000
driver_os          = win10-x64
base_image         = win10-edu-x64-10586-postsp
ztoolkit           = ztoolkit
efi_boot_image     = win10-edu-x64-10586-uefi-boot

[OSONLY-win7-sp1-pro-x86-zcm1142]
Description        = OSONLY-win7-sp1-pro-x86-zcm1142
project_image_path = osonly-win7-sp1-pro-x86-zcm1142
project_os         = win7-sp1-pro-x86
partition_count    = 1
partition1_size    = 60000
driver_os          = win7-x86
base_image         = win7-sp1-pro-x86-postsp
ztoolkit           = ztoolkit

[BASEOS-win10-ent-x86-14393-zcm1142]
Description        = BASEOS-win10-ent-x86-14393-zcm1142
project_image_path = baseos-win10-ent-x86-14393-zcm1142
project_os         = win10-ent-x86
partition_count    = 1
partition1_size    = 60000
driver_os          = win10-x86
base_image         = win10-ent-x86-14393-postsp
ztoolkit           = ztoolkit

Now add these entries into the [language] section of the lang.ini file then populate the language specific settings using the following example as a template:

; lang.ini

[language]
win10-ent-x86-14393-postsp = en, fr, nl
win10-edu-x64-10586-postsp = en, fr, nl, de

[en]
SystemLocale=en-GB
UserLocale=en-GB
InputLocale=0809:00000809
mui=en-GB
Geo = 242

[fr]
SystemLocale=fr-FR
UserLocale=fr-FR
InputLocale=040c:0000040C
mui=fr-FR
Geo = 84

[nl]
SystemLocale=nl-NL
UserLocale=nl-NL
InputLocale=0413:00000413
mui=nl-NL
Geo = 176

[de]
SystemLocale=de-DE
UserLocale=de-DE
InputLocale=0407:00000407
mui=de-DE
Geo = 94

Configure Zim to read the `lang.ini` file

Update the zim.cfg file to read in the available language options from the lang.ini file.

Open zim.cfg file in a text editor

Find the following section in the file and update to include the changes highlighted in green:

Label:Lookup_Project_Info

; Read in project specific information
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Project_Image_Path",Project_Image_Path
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Project_OS",Project_OS
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Partition_Count",Partition_Count
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Driver_OS",Project_Driver_OS
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Base_Image",Base_Image
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Ztoolkit",Project_Ztoolkit
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Novcomp",Project_novcomp

; Read in language information
; This uses the baseimage name from the projects.ini as the key.
; This allows different MUI options to be specified for different OS images to cater for version-specific files
File:Ini,Get,"%_ZimDir%lang.ini","language","%Base_Image%",lookup_lang
Set:Zisd_lang,GetKeyPairStringValue("%VendorDataENGLSTRING%", "lang")
Set:Zisd_ForceMui,GetKeyPairStringValue("%VendorDataENGLSTRING%", "ForceMui")

; Identify Win 10 version number from Base_Image variable.
Set:OSVersion,token("%Base_Image%","-","4")

Save the changes to the zim.cfg file

Configure the project restore form to display a language selection option (if available)

The project restore form only needs to display a list of language options when the base image being restored has language options configured in the lang.ini file.

Open the zim.cfg file in a text editor

Find the following section in the file and update to include the changes highlighted in green:

Label:Ztoolkit_ComputerName_Form

; Launch a Form to display detected hardware and select machine type
Form:Start,"Info","Hardware Detected","_OkCancel^_Ok",Blue
Form:Item,"Item1",Label,"Manufacturer"
Form:Item,"Item2",EditBox,"%Lookup_Section%",ReadOnly
Form:Item,"Item3",Label,"Model"
Form:Item,"Item4",EditBox,"%Lookup_Value%",ReadOnly
Form:Item,"Item5",Label,"Hardware Image"
Form:Item,"Item6",EditBox,"%Drivers_Image%",ReadOnly
Form:Item,"Item7",Label,"Hardware Type"
Form:Item,"Item8",EditBox,"%Machine_Type%",ReadOnly
Form:Item,"Item9",Label,"OS"
Form:Item,"Item10",EditBox,"%Project_OS%",ReadOnly
Form:Item,"Item11",Label,"Computer Name"
Form:Item,"Item12",EditBox,"%Ask_COMPUTERNAME%"
; Only display language selection if lang.ini info has been identified successfully
If:Var,lookup_lang,NE,""
  Form:Item,"mui1",Label,"Language:"
  Form:Item,"mui2",CheckBoxes,"%zisd_lang%","%lookup_lang%"
End:
Form:Item,"Item13",Label,"Auto Restart after imaging"
Form:Item,"Item14",RadioButtons,"Yes","Yes,No"
Form:Display,"Info"
Set:Ask_COMPUTERNAME,%_Info_item12%
Set:Ask_lang,%_Info_mui2%
Set:AutoRestart,%_Info_item14%
If:Var,Ask_COMPUTERNAME,EQ,""
Dialog:Ask,"","You must specify a Computer Name.","_Ok",Red
Goto:Ztoolkit_ComputerName
Else:
Set:ComputerNameLength,Len(%Ask_COMPUTERNAME%)
If:Var,ComputerNameLength,GT,"15"
Dialog:Ask,"Error","You must specify a Computer Name less than 16 characters","_Ok",Red
Goto:Ztoolkit_ComputerName_Form
End:
End:
If:Var,Ask_COMPUTERNAME,CONTAINS," "
Dialog:Ask,"","The Computer Name must not contain a space.","_Ok",Red
Goto:Ztoolkit_ComputerName_Form
End:
If:Var,Ask_COMPUTERNAME,NE,"%COMPUTERNAME%"
Set:COMPUTERNAME,"%Ask_COMPUTERNAME%"
End:

If:Var,lookup_lang,NE,""
Set:MuiCount,TokenCount("%Ask_lang%", ",")
If:Var,MuiCount,NE,0
; We need to specify which language pack will be set by default and if this will be locked for all users using group policy.
; Launch a Form to Set Default Language
Form:Start,"MUI","Language Options","_BackFinishCancel^_Finish",Blue
Form:Item,"Item1",Label,"Select Default Language"
Form:Item,"Item2",RadioButtons,"%zisd_DefaultLang%","%ask_lang%"
Form:Item,"Item3",Label,"Lock display language to selection"
Form:Item,"Item4",RadioButtons,"%zisd_ForceMui%","Yes,No"
Form:Display,"MUI"

If:Var,_Form,EQ,"_Cancel"
Menu:Return
End:
If:Var,_Form,EQ,"_Back"
Goto:Ztoolkit_ComputerName_Form
End:
Set:Ask_DefaultLang,%_Mui_Item2%
Set:Ask_ForceMui,%_Mui_Item4%
End:
End:

Save the changes to the zim.cfg file

Read in language settings from `lang.ini` based on information selected in the Zim form.

When you select a language code in the Zim form the appropriate information needs to then be read in from the lang.ini file.

Open the zim.cfg file in a text editor

Find the following section in the file and update to include the highlighted changes:

Dialog:Ask,"", "Warning! All hard disk data on this machine will be erased.\n\nContinue?","_YesNo",red
If:Var,_ask,eq,"_No"
        Menu:Return
End:

If:Var,lookup_lang,NE,""
; Lookup information based on the language selected in the zim form
If:Var,ask_DefaultLang,NE,""
File:Ini,Get,"%_ZimDir%lang.ini","%Ask_lang%","SystemLocale",lookup_SystemLocale
File:Ini,Get,"%_ZimDir%lang.ini","%ask_lang%","UserLocale",lookup_UserLocale
File:Ini,Get,"%_ZimDir%lang.ini","%ask_lang%","InputLocale",lookup_InputLocale
File:Ini,Get,"%_ZimDir%lang.ini","%ask_lang%","Geo",lookup_Geo
File:Ini,Get,"%_ZimDir%lang.ini","%ask_DefaultLang%","mui",lookup_defaultMui

; Identify each MUI pack based on the selection
Set:MuiIndex,"1"
Set:LookupMui,Token("%ask_lang%", ",", %MuiIndex%)
File:Ini,Get,"%_ZimDir%lang.ini","%LookupMui%","mui",MuiPacks
While:Var,MuiIndex,NE,"%MuiCount%"
Set:MuiIndex,Math("+", 1)
Set:LookupMui,Token("%Ask_lang%", ",", %MuiIndex%)
File:Ini,Get,"%_ZimDir%lang.ini","%LookupMui%","mui",lookupMui
Set:MuiPacks,"%MuiPacks%,%lookupMui%"
Wend:
End:
End:

Dialog:Popup,"Restoring ENGL Smart Windows build process, please wait...",green

Save the changes to the zim.cfg file

Update the `zim.cfg` file to store selected information to ZISD

The language information now needs to be stored to ZISD to ensure that the build process can access it within Windows.

Open the zim.cfg file in a text editor

Update the file to include the highlighted changes:

; Update the information in ZISD
Zisd:Put,NetBiosName,%COMPUTERNAME%

; Update VendorDataENGL (sample)
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","Machine_Type","%machine_type%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","OS","%project_os%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","Project","%lookup_project%")
; Store language information to ZISD if required.
If:Var,ask_lang,NE,""
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","lang","%Ask_lang%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","mui","%lookup_defaultMui%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","ForceMui","%Ask_ForceMui%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","SystemLocale","%lookup_SystemLocale%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","UserLocale","%lookup_UserLocale%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","InputLocale","%lookup_InputLocale%")
Set:VendorDataENGLSTRING,PutKeyPairStringValue("%VendorDataENGLSTRING%","Geo","%lookup_Geo%")
End:

Set:MonitorStatus,"Started"
Gosub:SendUpdateToMonitorServer

Save the changes to the zim.cfg file

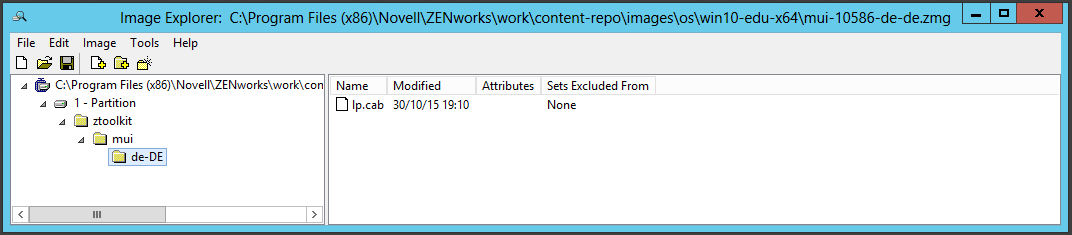

Update the `zim.cfg` file to restore selected MUI add-on image

Open the zim.cfg file in a text editor

Update the file to include the highlighted changes:

        ; BIOS Machines
        File:Run,"img %ImgRestoreCmd%os/%Project_OS%/%Base_Image%",verbose
        File:Run,"cat imglogr >> %_ZimDir%zim.log",verbose
        If:Var,_Error,EQ,"137"
                ; Trying to restore GPT based image in to BIOS machine.
                Dialog:Ask,"Warning!Image Restore Failed","img error:'Trying to restore GPT based image in to BIOS machine'\nThis is not supported.\n\nReturn to Menu","_Ok",Red
                Menu:Return
        End:
        File:Run,"img %ImgRestoreCmd%projects/%Project_Image_Path%/hotfixes.zmg %Project_Partition%",verbose
        File:Run,"cat imglogr >> %_ZimDir%zim.log",verbose
        File:Run,"img %ImgRestoreCmd%projects/%Project_Image_Path%/%Project_Novcomp% %Project_Partition%",verbose
        File:Run,"cat imglogr >> %_ZimDir%zim.log",verbose
        File:Run,"img %ImgRestoreCmd%projects/%Project_Image_Path%/%Project_Ztoolkit% %Project_Partition%",verbose
        File:Run,"cat imglogr >> %_ZimDir%zim.log",verbose
        File:Run,"img %ImgRestoreCmd%drivers/%Project_Driver_OS%/%Drivers_Image% %Project_Partition%",verbose
        File:Run,"cat imglogr >> %_ZimDir%zim.log",verbose
End:


; Restore MUI image file(if selected)
If:Var,MuiPacks,NE,""
; Need to Restore each of the specified language pack files
Set:MuiCount,TokenCount("%MuiPacks%", ",")
Set:MuiIndex,"0"
While:Var,MuiIndex,NE,"%MuiCount%"
Set:MuiIndex,Math("+", 1)
Set:MuiImage,Token("%MuiPacks%", ",", %MuiIndex%)
File:Run,"img %ImgRestoreCmd%os/%Project_OS%/mui-%OSVersion%-%MuiImage%.zmg %Project_Partition%",verbose
File:Run,"cat imglogr >> %_ZimDir%zim.log",verbose
Wend:
End:

Pause:2
Dialog:Popupclose

Save the changes to the zim.cfg file

Update `zimget.s` to download the `lang.ini` file into the ZENworks imaging environment

Update the standard zimget.s to also retrieve the lang.ini file:

...

tftp $PROXYADDR << _END_ > /dev/null
verbose on
bin
get zimfiles/ldapsdk.tar $ZIMDIR/ldapsdk.tar
get zimfiles/zim.tgz %_ZimDir%zim.tgz
get zimfiles/engl.lic $ZIMDIR/engl.lic
get zimfiles/zim.cfg $ZIMDIR/zim.cfg
get zimfiles/images.ini $ZIMDIR/images.ini
get zimfiles/projects.ini $ZIMDIR/projects.ini
get zimfiles/lang.ini $ZIMDIR/lang.ini
get zimfiles/zimrun.s $ZIMDIR/zimrun.s
quit
_END_
...

Save the changes to the zimget.s file

Save the updated files on the server

The updated zim.cfg, zimget.s and lang.ini files now need to be transferred to the tftp/zimfiles folder on the ZENworks server.

Integrate updates into the build process

The build process needs to be updated to install the MUI langage packs and if required force the display langauge to the appropriate language.

Done

Task

1.	Create MUI image files

2.	Configure the Language settings within the project

3.	Add a phase script to the project to install the MUI packs

4.	Create updated files for deployment

Create MUI add-on image files

The MUI files that were downloaded earlier need to be added to an image so that they can be deployed to the local machine by Zim.

Ensure the correct Language pack media has been downloaded for the base image that is being deployed.

Make a note of the version number used in the base_image name from the projects.ini file.

Mount the ISO file that contains the Language pack information

NOTE:

The files are either in a folder structure like:

\---langpacks
    +---ar-sa
    |       lp.cab
    |
    +---bg-bg
    |       lp.cab
    |
    +---cs-cz
    |       lp.cab
    |
    +---da-dk
    \       lp.cab

+---Windows Preinstallation Environment
+---x64
|   \---langpacks
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_af-za.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_am-et.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_as-in.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_az-latn-az.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_be-by.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_bn-bd.cab
|           Microsoft-Windows-Client-Language-Pack_x64_ar-sa.cab
|           Microsoft-Windows-Client-Language-Pack_x64_bg-bg.cab
|           Microsoft-Windows-Client-Language-Pack_x64_cs-cz.cab
|           Microsoft-Windows-Client-Language-Pack_x64_da-dk.cab
|           Microsoft-Windows-Client-Language-Pack_x64_de-de.cab
|
\---x86
    \---langpacks
            Microsoft-Windows-Client-Language-Interface-Pack_x86_af-za.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_am-et.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_as-in.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_az-latn-az.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_be-by.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_bn-bd.cab
            Microsoft-Windows-Client-Language-Pack_x86_ar-sa.cab
            Microsoft-Windows-Client-Language-Pack_x86_bg-bg.cab
            Microsoft-Windows-Client-Language-Pack_x86_cs-cz.cab
            Microsoft-Windows-Client-Language-Pack_x86_da-dk.cab
            Microsoft-Windows-Client-Language-Pack_x86_de-de.cab

Make a note of the language code for each LP or LIP file - this can be identified from the file name, e.g.

Microsoft-Windows-Client-Language-Interface-Pack_x64_zu-za.cab
Microsoft-Windows-Client-Language-Pack_x64_de-de.cab

\---langpacks
    +---ar-sa
    |       lp.cab
    |
    +---bg-bg
    |       lp.cab
    |
    +---cs-cz
    |       lp.cab
    |
    \---da-dk
           lp.cab

This gives a language code of zu-ZA [Zulu (South Africa)] for the Language Interface Pack while the Language Pack has a language code of de-DE [German (Germany)]

NOTE:

The second part of the language code is normally displayed in uppercase

Create folder structure to be used to store MUI files under C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\<win10>-<edition>-<arch>\ folder structure.

C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\Win10-edu-x64
     +---mui-10586-de-DE
     |   \---ztoolkit
     |       \---mui
     |           +---de-DE
     +---mui-10586-fr-FR
     |   \---ztoolkit
     |       \---mui
     |           +---fr-FR
     \---mui-10586-nl-NL
         \---ztoolkit
             \---mui
                 +---nl-NL

NOTE:

The version number 10586 is required to ensure that the correct MUI files are restored.

Copy appropriate files from the ISO into the file structure

Langauge Pack files (Windows 10 - 1607 or newer) are shown in green

C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\Win10-edu-x64
     +---mui-14393-de-DE
     |   \---ztoolkit
     |       \---mui
     |           \---de-DE
     |                   Microsoft-Windows-Client-Language-Pack_x64_fr-FR.cab
     +---mui-14393-fr-FR
     |   \---ztoolkit
     |       \---mui
     |           \---fr-FR
     |                   Microsoft-Windows-Client-Language-Pack_x64_fr-FR.cab
     \---mui-14393-nl-NL
         \---ztoolkit
             \---mui
                     \---nl-NL
                         Microsoft-Windows-Client-Language-Pack_x64_nl-NL.cab

While Langauge Pack files (Windows 10 - 1511 or earlier) will look like:

C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\Win10-edu-x64
     +---mui-10586-de-DE
     |   \---ztoolkit
     |       \---mui
     |           \---de-DE
     |                   lp.cab
     +---mui-10586-fr-FR
     |   \---ztoolkit
     |       \---mui
     |           \---fr-FR
     |                   lp.cab
     \---mui-10586-nl-NL
         \---ztoolkit
             \---mui
                 \---nl-NL
                         lp.cab

Create ZENworks add-on images using this folder structure such that the image filenames are called mui-<language code> and partition 1 contains the structure under mui-<language short code>

You will need to use Image Explorer to do this. This will be installed on the ZENworks server or can be installed localy after downloading the appropriate media from the ZENworks Tools page : https://{ZENWORKS_SERVER}/zenworks-setup/?pageId=imaging

e.g.
Save the newly created zmg files to the server in the images\os\<win10>-<windows edition>-<arch>\ folder structure and name using the format mui-<Windows Version>-<Language Code>.zmg
e.g. C:\Program Files (x86)\Novell\ZENworks\work\content-repo\images\os\win10-edu-x64\mui-10586-de-DE.zmg

Configure the language settings within the project

Language settings for the project are stored to ZISD by Zim when a project is deployed. The project needs to be updated to ensure that it uses this information.
- Update project settings to use variables configured using Zim

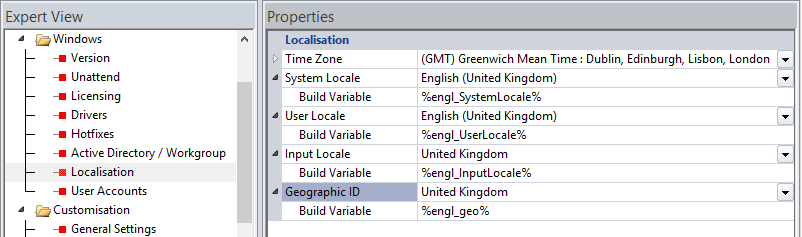

  Select "Expert View" - "Windows" - "Localisation"

  Expand the System/User/Input locale options

  For each "Build Variable" entry populate the appropriate variable:

  Language Setting Build Variable

  System Locale %ENGL_SystemLocale%

  User Locale %ENGL_UserLocale%

  Input Locale %ENGL_InputLocale%

  Geographic ID %ENGL_Geo%

  e.g.
- Save the changes to the project

Add a phase script to the project to install the MUI packs

The build process requires a custom phase script to be added to the project. This script will check if there is a c:\ztoolkit\mui folder and if it exists will run lpksetup to install the language packs in the folder structure. The script will also read in the language settings from ZISD and apply them to the machine.

Open notepad

Paste in the following Powershell script

# Powershell script to install MUI language packs if folder structure has been found.

# Create a reference to Ztoolkit Control
$Utils = new-object -comobject "ENGL.Ztoolkit.Utils"
$ZENworks = new-object -comobject "ENGL.Ztoolkit.ZENworks"

if (Test-Path C:\ztoolkit\mui)
{
# The c:\ztoolkit\mui folder exists
[void]$Utils.AppendLog("C:\ztoolkit\mui exists")
[void]$Utils.AppendLog("Installing MUI Packs. This may take a while!")

$process="lpksetup.exe"
$arg = "/r /i * /p c:\ztoolkit\mui"
$Utils.AppendLog("Using lpksetup to install Language packs found under c:\ztoolkit\mui")
start-process $process -argumentList:$arg -wait
$Utils.AppendLog("lpksetup has exited")

# Now setup the display language settings

# Read in MUI information from ZISD
# Read in ZISD:VendorDataENGL
$VendorDataENGLSTRING= $ZENworks.GetZisdAttributeValue("VendorDataENGL")

# Read the values from VendorDataENGLSTRING that we need to set the language.
$zisd_mui = $Utils.GetKeyPairStringValue($VendorDataENGLSTRING, "mui")
$zisd_ForceMui = $Utils.GetKeyPairStringValue($VendorDataENGLSTRING, "ForceMui")

$Utils.AppendLog("Zisd:MUI : $zisd_mui")

# Set Culture
$Utils.AppendLog("Set-Culture $zisd_mui")
Set-Culture $zisd_mui

#Set the system locale
$Utils.AppendLog("Set-WinSystemLocale $zisd_mui")
Set-WinSystemLocale $zisd_mui

# Set the Language List
$Utils.AppendLog("Set-WinUserLanguageList $zisd_mui -force")
Set-WinUserLanguageList $zisd_mui -force

# Set Group Policy key to force the UI settings to apply
# This will only be processed if $zisd_ForceMui is set to Yes.
If($zisd_ForceMui -eq "Yes")
{

[void]$Utils.appendlog("Configure Group Policy to set the PreferredUILanguage to $zisd_mui")
$registryPath = "HKLM:\Software\Policies\Microsoft\MUI\Settings"
$Name = "PreferredUILanguages"
$value = $zisd_mui

If(!(Test-Path $registryPath))
{
[void]$Utils.appendlog(" Registry key doesn't exist so we need to create it before writing to it.")
New-Item -Path $registryPath -Force | Out-Null
New-ItemProperty -Path $registryPath -Name $name -Value $value ` -PropertyType STRING -Force | Out-Null
}
Else
{
[void]$utils.appendlog("Registry key exists so set value")
New-ItemProperty -Path $registryPath -Name $name -Value $value  -PropertyType STRING -Force | Out-Null
}

}
}
Else
{
[void]$Utils.AppendLog("C:\ztoolkit\mui does NOT exist")
}

[void]$Utils.AppendLog("Phase1-after.ps1 has completed.")

Save the file to the file system as phase1-after.ps1 and make a note of the path for later

Open Build Console and load the appropriate <project>.xml file
Select the Expert View then navigate to Customisation : Custom Files
Right click in the properties view then select Add
The "Add Custom Files" dialog will open. Browse to the phase1-after.ps1 created earlier then select it
Click Open to add the file to the Custom Files property view

Create updated files for deployment

The project has now been updated. In order to deploy the changes when a machine is built the deployment process (ztoolkit) image needs to be recreated.
- Validate the project
- Launch Deployment wizard and create the build process image (ztoolkit)
- Update the ../content-repo/images/<project>/ folder with new ztoolkit image file.
Test updated files

The files have all been updated on the server. These now need to be tested to ensure that everything works as required.
- PXE boot a test machine to the updated imaging environment.
- Select the Restore menu
- Select the appropriate Windows 10 project
- Select the appropriate MUI options to be tested
- Select OK to restore the project images

  The image files will restore and the machine will reboot
- The machine will build successfully and when reviewed it will have the selected MUI Language Pack (and / or Language Interface Pack) installed. If the "Lock display language to selection" option is selected then language settings will be configured using group policy to enforce the specified language for all users.
The resulting menu process will look like:
If you have any problems or questions about the steps in this TID please contact the ENGL support team

ENGL Support

How can we help you today?

TID-2016012: Installing and configuring language settings during the Windows 10 build process (ZENworks Imaging) Print

Issue

Requirements

Solution

Steps

Download langauge pack ISO files from Microsoft

Configure the Imaging Environment

Create a `lang.ini` lookup file

Configure Zim to read the `lang.ini` file

Configure the project restore form to display a language selection option (if available)

Read in language settings from `lang.ini` based on information selected in the Zim form.

Update the `zim.cfg` file to store selected information to ZISD

Update the `zim.cfg` file to restore selected MUI add-on image

Update `zimget.s` to download the `lang.ini` file into the ZENworks imaging environment

Save the updated files on the server

Integrate updates into the build process

Create MUI add-on image files

Configure the language settings within the project

Add a phase script to the project to install the MUI packs

Create updated files for deployment

Test updated files

Language Setting	Build Variable
System Locale	%ENGL_SystemLocale%
User Locale	%ENGL_UserLocale%
Input Locale	%ENGL_InputLocale%
Geographic ID	%ENGL_Geo%

How can we help you today?

TID-2016012: Installing and configuring language settings during the Windows 10 build process (ZENworks Imaging) Print

Issue

Requirements

Solution

Steps

Download langauge pack ISO files from Microsoft

Configure the Imaging Environment

Create a lang.ini lookup file

Configure Zim to read the lang.ini file

Configure the project restore form to display a language selection option (if available)

Read in language settings from lang.ini based on information selected in the Zim form.

Update the zim.cfg file to store selected information to ZISD

Update the zim.cfg file to restore selected MUI add-on image

Update zimget.s to download the lang.ini file into the ZENworks imaging environment

Save the updated files on the server

Integrate updates into the build process

Create MUI add-on image files

Configure the language settings within the project

Add a phase script to the project to install the MUI packs

Create updated files for deployment

Test updated files

Related Articles

Create a `lang.ini` lookup file

Configure Zim to read the `lang.ini` file

Read in language settings from `lang.ini` based on information selected in the Zim form.

Update the `zim.cfg` file to store selected information to ZISD

Update the `zim.cfg` file to restore selected MUI add-on image

Update `zimget.s` to download the `lang.ini` file into the ZENworks imaging environment
