ENGL TID-2016014: Installing and configuring language settings during the Windows 10 build process (System Center) : ENGL Support

Issue

Microsoft have released ISOs containing Windows 10 language packs. This TID details a method to select and integrate them into a Windows 10 build that is deployed via System Center.

Requirements

Windows 10 (Enterprise or Education edition)
Imaging Toolkit 10.0.4 (or newer)
ENGL build process configured in a System Center environment (Windows PE imaging)

Solution

Integrate Language Pack selection and installation into the deployment process as follows;

Update Zim to display a list of available language options when restoring images
When a language is selected restore the appropriate files to the local machine and store information to EBD
Prompt to select the default language if more than one language is selected
Prompt to enforce the selected default language (using Group policy setting)
Install selected language packs during the deployment process and set as the default UI language

NOTE:

More information on Windows 10 language packs is available at https://support.microsoft.com/en-us/help/14236/language-packs

WARNING!

Do NOT perform this procedure in a production environment without first fully testing in a non-production test environment.

Steps

Done

Task

1.	Download appropriate language packs from Microsoft

2.	Configure the Imaging Environment

3.	Integrate updates into build process

4.	Test updated files

Download langauge pack ISO files from Microsoft

Sign into the Microsot Volume Licensing Service Center web page.
Select the "Downloads and Keys" tab
Search for "Windows 10 language"

Select Language Pack media for the OS being deployed. This may be version specific e.g. Windows 10 Enterprise LTSB 2015 or Windows 10 Language Pack, Version 1607.

NOTE:

Microsoft has changed the naming format of the language pack files with the Windows 10 1607 release.
More information here: https://msdn.microsoft.com/en-gb/windows/hardware/commercialize/manufacture/desktop/where-is-lpcab .
This TID will work with both filename formats.

Download the Language Pack media.

Configure the Imaging Environment

Zim is used to select which project is restored to the machine. With the changes in this TID Zim will also let you select the language to be configured once the machine has been built.

Done Task

1.	Create a language lookup file, `lang.ini`

2.	Configure Zim to read the `lang.ini` file

3.	Configure the project restore form to display a language selection option (if available)

4.	Read in language settings from `lang.ini` based on information selected in the Zim form.

5.	Configure Zim to use EBD to store and restore the selected langage details

6.	Configure Zim to restore the language image file(s)

7.	Update `zimpeget.cmd`

8.	Save files to the server

Create a `lang.ini` lookup file

This file will list the available languages for each base image name as well as the locale information for the each language. The locale information will be used to ensure the correct keyboard layout etc. is set for the deployed machine.

This file should be created in the <integration path>/zenworks/tftp/zimfiles folder.

In this example scenario there are three MUI packs available plus the default language of English. Note that the MUI language packs are specific to the OS version. So, in order to ensure that the correct version is restored the Base_Image name from the projects.ini file is used.

Review the projects.ini file and identify the Base_Image name for the OS you wish to deploy MUI packs to. For example, the entries highlighted in red below:

;
; ENGL Zim projects.ini lookup file
;

[projects]
project1 = Windows 10 Education [10586 (Feb '16)] (x64) - en-US
project2 = OSONLY-win7-sp1-pro-x86-sccm1606
project3 = BASEOS-win10-ent-x86-14393-sccm1606

; Project details
[Windows 10 Education [10586 (Feb '16)] (x64) - en-US]
Description        = Windows 10 Education [10586 (Feb '16)] (x64) - en-US
project_image_path = win10-edu-x64
project_os         = win10-edu-x64
partition_count    = 2
partition1_size    = 600
partition2_size    = 60000
driver_os          = win10-x64
base_image         = win10-edu-x64-10586-postsp
ztoolkit           = ztoolkit
efi_boot_image     = win10-edu-x64-10586-uefi-boot

[OSONLY-win7-sp1-pro-x86-sccm1606]
Description        = OSONLY-win7-sp1-pro-x86-sccm1606
project_image_path = osonly-win7-sp1-pro-x86-sccm1606
project_os         = win7-sp1-pro-x86
partition_count    = 1
partition1_size    = 60000
driver_os          = win7-x86
base_image         = win7-sp1-pro-x86-postsp
ztoolkit           = ztoolkit

[BASEOS-win10-ent-x86-14393-sccm1606]
Description        = BASEOS-win10-ent-x86-14393-sccm1606
project_image_path = baseos-win10-ent-x86-14393-sccm1606
project_os         = win10-ent-x86
partition_count    = 1
partition1_size    = 60000
driver_os          = win10-x86
base_image         = win10-ent-x86-14393-postsp
ztoolkit           = ztoolkit

Now add these entries into the [language] section of the lang.ini file then populate the language specific settings using the following example as a template:

; lang.ini

[language]
win10-ent-x86-14393-postsp = en, fr, nl
win10-edu-x64-10586-postsp = en, fr, nl, de

[en]
SystemLocale=en-GB
UserLocale=en-GB
InputLocale=0809:00000809
mui=en-GB
Geo = 242

[fr]
SystemLocale=fr-FR
UserLocale=fr-FR
InputLocale=040c:0000040C
mui=fr-FR
Geo = 84

[nl]
SystemLocale=nl-NL
UserLocale=nl-NL
InputLocale=0413:00000413
mui=nl-NL
Geo = 176

[de]
SystemLocale=de-DE
UserLocale=de-DE
InputLocale=0407:00000407
mui=de-DE
Geo = 94

Configure Zim to read the `lang.ini` file

Update the zim.cfg file to read in the available language options from the lang.ini file.

Open zim.cfg file in a text editor

Find the following section in the file and update to include the changes highlighted in green:

Label:Lookup_Project_Info

; Read in project specific information
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Project_Image_Path",Project_Image_Path
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Project_OS",Project_OS
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Partition_Count",Partition_Count
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Driver_OS",Project_Driver_OS
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Base_Image",Base_Image
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Ztoolkit",Project_Ztoolkit
File:Ini,Get,"%_ZimDir%projects.ini","%Lookup_Project%","Novcomp",Project_novcomp

; Read in language information
; This uses the baseimage name from the projects.ini as the key.
; This allows different MUI options to be specified for different OS images to cater for version-specific files
File:Ini,Get,"%_ZimDir%lang.ini","language","%Base_Image%",lookup_lang

Set:Ebd_lang,GetKeyPairStringValue("%EBDSTRING%", "lang")
Set:Ebd_ForceMui,GetKeyPairStringValue("%EBDSTRING%", "ForceMui")

; Identify Win 10 version number from Base_Image variable.
Set:OSVersion,token("%Base_Image%","-","4")

Save the changes to the zim.cfg file

Configure the project restore form to display a language selection option (if available)

The project restore form only needs to display a list of language options when the base image being restored has language options configured in the lang.ini file.

Open the zim.cfg file in a text editor

Find the following section in the file and update to include the changes highlighted in green:

Label:Ztoolkit_ComputerName_Form

; Launch a Form to display detected hardware and select machine type
Form:Start,"Info","Hardware Detected","_OkCancel^_Ok",Blue
Form:Item,"Item1",Label,"Manufacturer"
Form:Item,"Item2",EditBox,"%Lookup_Section%",ReadOnly
Form:Item,"Item3",Label,"Model"
Form:Item,"Item4",EditBox,"%Lookup_Value%",ReadOnly
Form:Item,"Item5",Label,"Hardware Image"
Form:Item,"Item6",EditBox,"%Drivers_Image%",ReadOnly
Form:Item,"Item7",Label,"Hardware Type"
Form:Item,"Item8",EditBox,"%Machine_Type%",ReadOnly
Form:Item,"Item9",Label,"OS"
Form:Item,"Item10",EditBox,"%Project_OS%",ReadOnly
Form:Item,"Item11",Label,"Computer Name"
Form:Item,"Item12",EditBox,"%Ask_COMPUTERNAME%"
; Only display language selection if lang.ini info has been identified successfully
If:Var,lookup_lang,NE,""
  Form:Item,"mui1",Label,"Language:"
  Form:Item,"mui2",CheckBoxes,"%Ebd_lang%","%lookup_lang%"
End:
Form:Item,"Item13",Label,"Auto Restart after imaging"
Form:Item,"Item14",RadioButtons,"Yes","Yes,No"
Form:Display,"Info"

If:Var,_Form,EQ,"_Cancel"
Menu:Return
End

Set:Ask_COMPUTERNAME,%_Info_item12%
Set:Ask_lang,%_Info_mui2%
Set:AutoRestart,%_Info_item14%
If:Var,Ask_COMPUTERNAME,EQ,""
Dialog:Ask,"","You must specify a Computer Name.","_Ok",Red
Goto:Ztoolkit_ComputerName
Else:
Set:ComputerNameLength,Len(%Ask_COMPUTERNAME%)
If:Var,ComputerNameLength,GT,"15"
Dialog:Ask,"Error","You must specify a Computer Name less than 16 characters","_Ok",Red
Goto:Ztoolkit_ComputerName_Form
End:
End:
If:Var,Ask_COMPUTERNAME,CONTAINS," "
Dialog:Ask,"","The Computer Name must not contain a space.","_Ok",Red
Goto:Ztoolkit_ComputerName_Form
End:
If:Var,Ask_COMPUTERNAME,NE,"%COMPUTERNAME%"
Set:COMPUTERNAME,"%Ask_COMPUTERNAME%"
End:

If:Var,lookup_lang,NE,""
Set:MuiCount,TokenCount("%Ask_lang%", ",")
; workaround issue with token count in zim(pe)
Set:LookupMuiLength,len("%ask_lang%")
If:Var,LookupMuiLength,"GT","1"
If:Var,MuiCount,EQ,"0"
Set:MuiCount,Math("+", 1)
End:
End:
If:Var,MuiCount,NE,0
; We need to specify which language pack will be set by default and if this will be locked for all users using group policy.
; Launch a Form to Set Default Language
Form:Start,"MUI","Language Options","_BackFinishCancel^_Finish",Blue
Form:Item,"Item1",Label,"Select Default Language"
Form:Item,"Item2",RadioButtons,"%zisd_DefaultLang%","%ask_lang%"
Form:Item,"Item3",Label,"Lock display language to selection"
Form:Item,"Item4",RadioButtons,"%zisd_ForceMui%","Yes,No"
Form:Display,"MUI"

If:Var,_Form,EQ,"_Cancel"
Menu:Return
End:
If:Var,_Form,EQ,"_Back"
Goto:Ztoolkit_ComputerName_Form
End:
Set:Ask_DefaultLang,%_Mui_Item2%
Set:Ask_ForceMui,%_Mui_Item4%
End:
End:

Save the changes to the zim.cfg file

Read in language settings from `lang.ini` based on information selected in the Zim form.

When you select a language code in the Zim form the appropriate information needs to then be read in from the lang.ini file.

Open the zim.cfg file in a text editor

Find the following section in the file and update to include the highlighted changes:

Dialog:Ask,"", "Warning! All hard disk data on this machine will be erased.\n\nContinue?","_YesNo",red
If:Var,_ask,eq,"_No"
        Menu:Return
End:

If:Var,lookup_lang,NE,""
; Lookup information based on the language selected in the zim form
If:Var,ask_DefaultLang,NE,""
File:Ini,Get,"%_ZimDir%lang.ini","%Ask_lang%","SystemLocale",lookup_SystemLocale
File:Ini,Get,"%_ZimDir%lang.ini","%ask_lang%","UserLocale",lookup_UserLocale
File:Ini,Get,"%_ZimDir%lang.ini","%ask_lang%","InputLocale",lookup_InputLocale
File:Ini,Get,"%_ZimDir%lang.ini","%ask_lang%","Geo",lookup_Geo
File:Ini,Get,"%_ZimDir%lang.ini","%ask_DefaultLang%","mui",lookup_defaultMui

; Identify each MUI pack based on the selection
Set:MuiIndex,"1"
Set:LookupMui,Token("%ask_lang%", ",", %MuiIndex%)
File:Ini,Get,"%_ZimDir%lang.ini","%LookupMui%","mui",MuiPacks
While:Var,MuiIndex,NE,"%MuiCount%"
Set:MuiIndex,Math("+", 1)
Set:LookupMui,Token("%Ask_lang%", ",", %MuiIndex%)
File:Ini,Get,"%_ZimDir%lang.ini","%LookupMui%","mui",lookupMui
Set:MuiPacks,"%MuiPacks%,%lookupMui%"
Wend:
End:
End:

Dialog:Popup,"Restoring ENGL Smart Windows build process, please wait...",green

Save the changes to the zim.cfg file

Update the `zim.cfg` file to store selected information to EBD

The language information now needs to be stored to EBD to ensure that the build process can access it within Windows.

Open the zim.cfg file in a text editor

Update the file to include the highlighted changes:

; Update EBDSTRING (sample)
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","Machine_Type","%Machine_Type%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","OS","%Project_OS%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","Project","%Lookup_Project%")
; Store language information to EBD if required.
If:Var,ask_lang,NE,""
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","lang","%Ask_lang%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","mui","%lookup_defaultMui%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","ForceMui","%Ask_ForceMui%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","SystemLocale","%lookup_SystemLocale%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","UserLocale","%lookup_UserLocale%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","InputLocale","%lookup_InputLocale%")
Set:EBDSTRING,PutKeyPairStringValue("%EBDSTRING%","Geo","%lookup_Geo%")
End:

Set:MonitorStatus,"Started"
Gosub:SendUpdateToMonitorServer

Save the changes to the zim.cfg file

Update the `zim.cfg` file to restore selected MUI add-on image

Open the zim.cfg file in a text editor

Update the file to include the highlighted changes:

Wim:Apply,"%Images_Path%\projects\%Project_Image_Path%\%Project_Ztoolkit%.wim","1","%Project_Partition%"
If:Var,_Error,Eq,1
        ; Error applying image
        Dialog:Ask,"Error","Failed to restore image:\n\n%Images_Path%\projects\%Project_Image_Path%\%Project_Ztoolkit%.wim\n\nClick OK to return to menu.",_Ok
        Menu:Return
End:
Wim:Apply,"%Images_Path%\drivers\%Project_Driver_OS%\%Drivers_Image%.wim","1","%Project_Partition%"

; Restore MUI image file(if Required)
If:Var,MuiPacks,NE,""
; Need to Restore each of the specified language pack files
Set:MuiCount,TokenCount("%MuiPacks%", ",")
; workaround issue with token count in zim(pe)
Set:MuiPacksLength,len("%MuiPacks%")
If:Var,MuiPacksLength,"GT","1"
If:Var,MuiCount,EQ,"0"
Set:MuiCount,Math("+", 1)
End:
End:
Set:MuiIndex,"0"
While:Var,MuiIndex,NE,"%MuiCount%"
Set:MuiIndex,Math("+", 1)
Set:MuiImage,Token("%MuiPacks%", ",", %MuiIndex%)
Wim:Apply,"%Images_Path%\os\%Project_OS%\mui-%OSVersion%-%MuiImage%.wim","1","%Project_Partition%"
Wend:
End:


File:Run,"net use "%Images_Path%" /delete /yes", silent
Pause:2
Dialog:Popupclose

Save the changes to the zim.cfg file

Update `zimpeget.cmd` to download the `lang.ini` file into the TFTP folder structure

Update the standard zimpeget.cmd to also retrieve the lang.ini file:

...

REM Disable Windows Firewall
wpeutil.exe DisableFirewall

REM TFTP files
for %%i in (zim.exe ztrace.exe) do Ztftpclient.exe /get /blksize:4096 /host:%PROXYADDR% /remote:"zimfiles/%PLATFORM%/%%i" /local:%%i >NUL
for %%i in (engl.lic zim.cfg zim.jpg images.ini projects.ini lang.ini) do Ztftpclient.exe /get /blksize:4096 /host:%PROXYADDR% /remote:"zimfiles/%%i" /local:%%i >NUL

REM Enable Windows Firewall
wpeutil.exe EnableFirewall

...

Save the changes to the zimpeget.cmd file

Save the updated files on the server
The updated zim.cfg, zimpeget.cmd and lang.ini files now need to be transferred to the tftp/zimfiles folder on the ZENworks server.

Integrate updates into the build process

The build process needs to be updated to install the MUI langage packs and if required force the display langauge to the appropriate language.

Done

Task

1.	Create MUI image files

2.	Configure the Language settings within the project

3.	Add a phase script to the project to install the MUI packs

4.	Create updated files for deployment

Create MUI add-on image files

The MUI files that were downloaded earlier need to be added to an image so that they can be deployed to the local machine by Zim.

Ensure the correct Language pack media has been downloaded for the base image that is being deployed.

Make a note of the version number used in the base_image name from the projects.ini file.

Mount the ISO file that contains the Language pack information

NOTE:

The files are either in a folder structure like:

\---langpacks
    +---ar-sa
    |       lp.cab
    |
    +---bg-bg
    |       lp.cab
    |
    +---cs-cz
    |       lp.cab
    |
    +---da-dk
    \       lp.cab

+---Windows Preinstallation Environment
+---x64
|   \---langpacks
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_af-za.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_am-et.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_as-in.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_az-latn-az.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_be-by.cab
|           Microsoft-Windows-Client-Language-Interface-Pack_x64_bn-bd.cab
|           Microsoft-Windows-Client-Language-Pack_x64_ar-sa.cab
|           Microsoft-Windows-Client-Language-Pack_x64_bg-bg.cab
|           Microsoft-Windows-Client-Language-Pack_x64_cs-cz.cab
|           Microsoft-Windows-Client-Language-Pack_x64_da-dk.cab
|           Microsoft-Windows-Client-Language-Pack_x64_de-de.cab
|
\---x86
    \---langpacks
            Microsoft-Windows-Client-Language-Interface-Pack_x86_af-za.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_am-et.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_as-in.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_az-latn-az.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_be-by.cab
            Microsoft-Windows-Client-Language-Interface-Pack_x86_bn-bd.cab
            Microsoft-Windows-Client-Language-Pack_x86_ar-sa.cab
            Microsoft-Windows-Client-Language-Pack_x86_bg-bg.cab
            Microsoft-Windows-Client-Language-Pack_x86_cs-cz.cab
            Microsoft-Windows-Client-Language-Pack_x86_da-dk.cab
            Microsoft-Windows-Client-Language-Pack_x86_de-de.cab

Make a note of the language code for each LP or LIP file - this can be identified from the file name, e.g.

Microsoft-Windows-Client-Language-Interface-Pack_x64_zu-za.cab
Microsoft-Windows-Client-Language-Pack_x64_de-de.cab

\---langpacks
    +---ar-sa
    |       lp.cab
    |
    +---bg-bg
    |       lp.cab
    |
    +---cs-cz
    |       lp.cab
    |
    \---da-dk
           lp.cab

This gives a language code of zu-ZA [Zulu (South Africa)] for the Language Interface Pack while the Language Pack has a language code of de-DE [German (Germany)]

NOTE:

The second part of the language code is normally displayed in uppercase

Create folder structure to be used to store MUI files under C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\<win10>-<edition>-<arch>\ folder structure.

C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\Win10-edu-x64
     +---mui-10586-de-DE
     |   \---ztoolkit
     |       \---mui
     |           +---de-DE
     +---mui-10586-fr-FR
     |   \---ztoolkit
     |       \---mui
     |           +---fr-FR
     \---mui-10586-nl-NL
         \---ztoolkit
             \---mui
                 +---nl-NL

NOTE:

The version number 10586 is required to ensure that the correct MUI files are restored.

Copy appropriate files from the ISO into the file structure

Langauge Pack files (Windows 10 - 1607 or newer) are shown in green

C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\Win10-edu-x64
     +---mui-14393-de-DE
     |   \---ztoolkit
     |       \---mui
     |           \---de-DE
     |                   Microsoft-Windows-Client-Language-Pack_x64_de-DE.cab
     +---mui-14393-fr-FR
     |   \---ztoolkit
     |       \---mui
     |           \---fr-FR
     |                   Microsoft-Windows-Client-Language-Pack_x64_fr-FR.cab
     \---mui-14393-nl-NL
         \---ztoolkit
             \---mui
                     \---nl-NL
                         Microsoft-Windows-Client-Language-Pack_x64_nl-NL.cab

While Langauge Pack files (Windows 10 - 1511 or earlier) will look like:

C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\Win10-edu-x64
     +---mui-10586-de-DE
     |   \---ztoolkit
     |       \---mui
     |           \---de-DE
     |                   lp.cab
     +---mui-10586-fr-FR
     |   \---ztoolkit
     |       \---mui
     |           \---fr-FR
     |                   lp.cab
     \---mui-10586-nl-NL
         \---ztoolkit
             \---mui
                 \---nl-NL
                         lp.cab

Install the ENGL Wimwiz tool (available to purchase) from - https://www.engl.co.uk/products/wimwiz

NOTE: It is possible to use imagex / dism to set up the MUI wim images rather than the ENGL WimWiz tool. The steps for this process are outwith the scope of this TID.

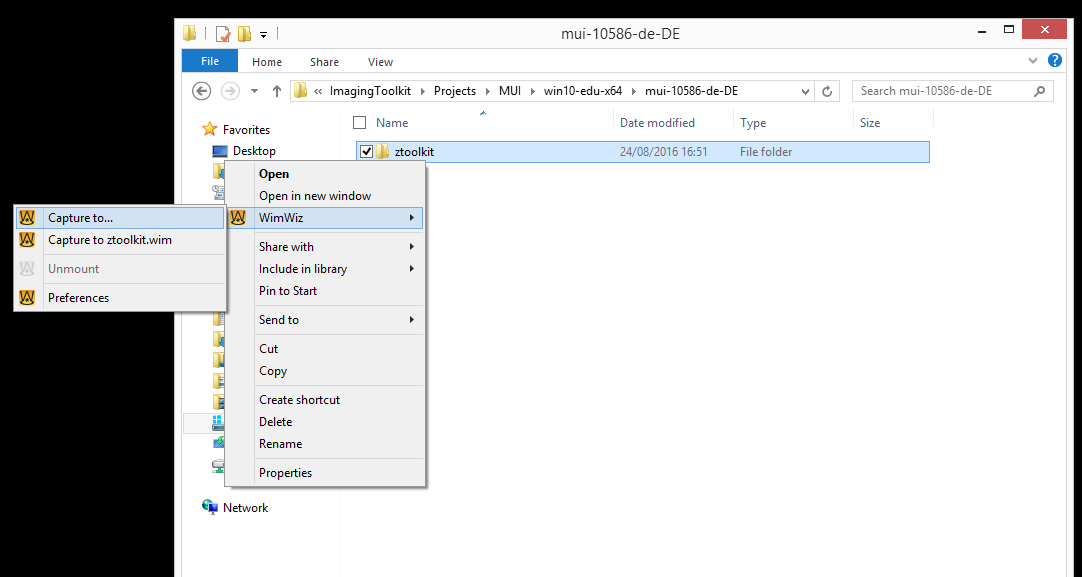

Right click on mui-de-DE folder then select WimWiz -> Capture to ..

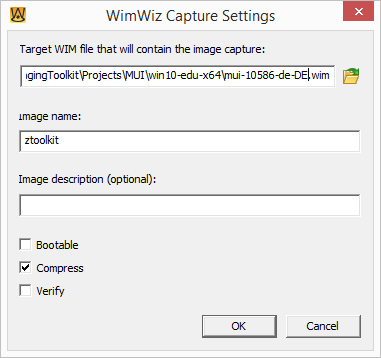

The WimWiz Capture Settings page will load.

Change the Target path from : C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\win10-edu-x64\mui-10586-de-DE\ztoolkit.wim
to:
C:\ProgramData\ENGL\ImagingToolkit\Projects\MUI\win10-edu-x64\mui-10586-de-DE.wim

Then click OK
Save the newly created wim files to the <server>\<images share>\os\<win10>-<windows edition>-<arch>\ folder structure and name using mui-<Windows Version>-<Language Code>.wim
i.e.
\\labsrv1\images\os\win10-edu-x64\mui-10586-de-de.wim

Configure the language settings within the project
Language settings for the project are stored to EBD by Zim when a project is deployed. The project needs to be updated to ensure that it uses this information.
- Update project settings to use variables configured using Zim

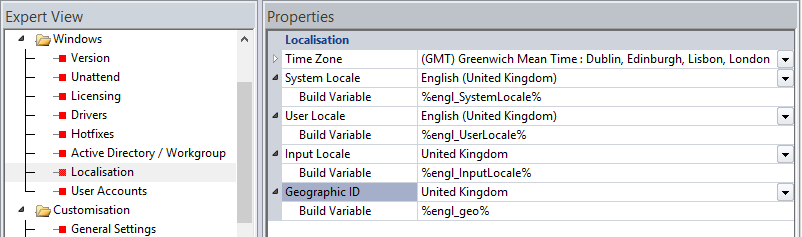

  Select "Expert View" - "Windows" - "Localisation"

  Expand the System/User/Input locale options

  For each "Build Variable" entry populate the appropriate variable:

  Language Setting Build Variable
  System Locale %ENGL_SystemLocale%
  User Locale %ENGL_UserLocale%
  Input Locale %ENGL_InputLocale%
  Geographic ID %ENGL_Geo%

  e.g.
- Save the changes to the project

Add a phase script to the project to install the MUI packs

The build process requires a custom phase script to be added to the project. This script will check if there is a c:\ztoolkit\mui folder and if it exists will run lpksetup to install the language packs in the folder structure. The script will also read in the language settings from EBD and apply them to the machine.

Open notepad

Paste in the following Powershell script

# Powershell script to install MUI language packs if folder structure has been found.

# Create a reference to Ztoolkit Control
$Utils = new-object -comobject "ENGL.Ztoolkit.Utils"
$EBD = new-object -comobject "ENGL.Ztoolkit.EBD"

if (Test-Path C:\ztoolkit\mui)
{
# The c:\ztoolkit\mui folder exists
[void]$Utils.AppendLog("C:\ztoolkit\mui exists")
[void]$Utils.AppendLog("Installing MUI Packs. This may take a while!")

$process="lpksetup.exe"
$arg = "/r /i * /p c:\ztoolkit\mui"
$Utils.AppendLog("Using lpksetup to install Language packs found under c:\ztoolkit\mui")
start-process $process -argumentList:$arg -wait
$Utils.AppendLog("lpksetup has exited")

# Now setup the display language settings

# Read in MUI information from EBD
# Read in EBD:Custom
$EBDSTRING= $EBD.Get("Custom")

# Read the values from EBDSTRING that we need to set the language.
$Ebd_mui = $Utils.GetKeyPairStringValue($EBDSTRING, "mui")
$Ebd_ForceMui = $Utils.GetKeyPairStringValue($EBDSTRING, "ForceMui")

$Utils.AppendLog("EBD:MUI : $Ebd_mui")

# Set Culture
$Utils.AppendLog("Set-Culture $Ebd_mui")
Set-Culture $Ebd_mui

#Set the system locale
$Utils.AppendLog("Set-WinSystemLocale $Ebd_mui")
Set-WinSystemLocale $Ebd_mui

# Set the Language List
$Utils.AppendLog("Set-WinUserLanguageList $Ebd_mui -force")
Set-WinUserLanguageList $Ebd_mui -force

# Set Group Policy key to force the UI settings to apply
# This will only be processed if $Ebd_ForceMui is set to Yes.
If($Ebd_ForceMui -eq "Yes")
{

[void]$Utils.appendlog("Configure Group Policy to set the PreferredUILanguage to $Ebd_mui")
$registryPath = "HKLM:\Software\Policies\Microsoft\MUI\Settings"
$Name = "PreferredUILanguages"
$value = $Ebd_mui

If(!(Test-Path $registryPath))
{
[void]$Utils.appendlog(" Registry key doesn't exist so we need to create it before writing to it.")
New-Item -Path $registryPath -Force | Out-Null
New-ItemProperty -Path $registryPath -Name $name -Value $value ` -PropertyType STRING -Force | Out-Null
}
Else
{
[void]$utils.appendlog("Registry key exists so set value")
New-ItemProperty -Path $registryPath -Name $name -Value $value  -PropertyType STRING -Force | Out-Null
}

}
}
Else
{
[void]$Utils.AppendLog("C:\ztoolkit\mui does NOT exist")
}

[void]$Utils.AppendLog("Phase1-after.ps1 has completed.")

Save the file to the file system as phase1-after.ps1 and make a note of the path for later

Open Build Console and load the appropriate <project>.xml file
Select the Expert View then navigate to Customisation : Custom Files
Right click in the properties view then select Add
The "Add Custom Files" dialog will open. Browse to the phase1-after.ps1 created earlier then select it
Click Open to add the file to the Custom Files property view

Create updated files for deployment
The project has now been updated. In order to deploy the changes when a machine is built the deployment process (ztoolkit) image needs to be recreated.
- Validate the project
- Launch Deployment wizard and create the build process image (ztoolkit)
- Update the ..\images\<project>\ folder with new ztoolkit image file.
Test updated files
The files have all been updated on the server. These now need to be tested to ensure that everything works as required.
- PXE boot a test machine to the updated imaging environment.
- Select the Restore menu
- Select the appropriate Windows 10 project
- Select the appropriate MUI options to be tested
- Select OK to restore the project images

  The image files will restore and the machine will reboot
- The machine will build successfully and when reviewed it will have the selected MUI Language Pack (and / or Language Interface Pack) installed
The process will look like:
If you have any problems or questions about the steps in this TID please contact the ENGL support team

ENGL Support

How can we help you today?

TID-2016014: Installing and configuring language settings during the Windows 10 build process (System Center) Print

Issue

Requirements

Solution

Steps

Download langauge pack ISO files from Microsoft

Configure the Imaging Environment

Create a `lang.ini` lookup file

Configure Zim to read the `lang.ini` file

Configure the project restore form to display a language selection option (if available)

Read in language settings from `lang.ini` based on information selected in the Zim form.

Update the `zim.cfg` file to store selected information to EBD

Update the `zim.cfg` file to restore selected MUI add-on image

Update `zimpeget.cmd` to download the `lang.ini` file into the TFTP folder structure

Save the updated files on the server

Integrate updates into the build process

Create MUI add-on image files

Configure the language settings within the project

Add a phase script to the project to install the MUI packs

Create updated files for deployment

Test updated files

Language Setting	Build Variable
System Locale	%ENGL_SystemLocale%
User Locale	%ENGL_UserLocale%
Input Locale	%ENGL_InputLocale%
Geographic ID	%ENGL_Geo%

How can we help you today?

TID-2016014: Installing and configuring language settings during the Windows 10 build process (System Center) Print

Issue

Requirements

Solution

Steps

Download langauge pack ISO files from Microsoft

Configure the Imaging Environment

Create a lang.ini lookup file

Configure Zim to read the lang.ini file

Configure the project restore form to display a language selection option (if available)

Read in language settings from lang.ini based on information selected in the Zim form.

Update the zim.cfg file to store selected information to EBD

Update the zim.cfg file to restore selected MUI add-on image

Update zimpeget.cmd to download the lang.ini file into the TFTP folder structure

Save the updated files on the server

Integrate updates into the build process

Create MUI add-on image files

Configure the language settings within the project

Add a phase script to the project to install the MUI packs

Create updated files for deployment

Test updated files

Related Articles

Create a `lang.ini` lookup file

Configure Zim to read the `lang.ini` file

Read in language settings from `lang.ini` based on information selected in the Zim form.

Update the `zim.cfg` file to store selected information to EBD

Update the `zim.cfg` file to restore selected MUI add-on image

Update `zimpeget.cmd` to download the `lang.ini` file into the TFTP folder structure
